1.Make starting holes for wire-cutting.
2.Drill small & deep holes on extra hard steel, alloy, metallizer, power
metallurgy and on metals that ordinary drilling machine unable to work on.
3.Able to drill small & deep holes on spherical curved and irregular working
surface.
4.Work table is made of stainless steel.
5.Z axis equipped with precise ballscrew to obtain high stability and high speed
machining.
6.Material for electrode tube can be either brass or copper.
7.Dielectric fluid can be either water or distilled water, as far as low cost
is concerned.
8.Sodick patents licensed.

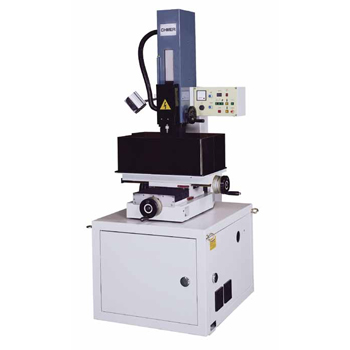

MACHINE UNIT
| Model |
Unit |
CMH30A |
| Max. workpiece size(WxDxH) |
mm/inch |
650x300x250 / 25.6x11.8x9.8 |
| Max. workpiece weight |
kgs/lbs |
100 / 220.4 |
| Table travel(X,Y) |
mm/inch |
300x200 / 11.8x7.9 |
| Ram travel(Z1) |
mm/inch |
340 / 13.3 |
| Ram travel(Z2) |
mm/inch |
* |
| Machine head movement |
mm/inch |
150 / 5.9 |
| Electrode pipe Diameter |
mm/inch |
¡í0.2~¡í6.0(one unit/0.1) |
| Max. electrode pipe
length |
mm/inch |
400 / 15.7 |
| Distance from table
to bottom of guide |
mm/inch |
5-200 / 0.2-7.9 |
| Fluid capacity |
- |
25 liter x2 |
| Dielectric |
- |
Water |
| Outside dimensions(WxDxH) |
mm/inch |
1000x1030x2200 / 39.4x40.6x86.6 |
| Net weight |
kgs/lbs |
POWER SUPPLY
| Model |
Unit |
|
| Input power source |
KVA |
3 |
| Pulse generation
system |
- |
Power FET switching |
| Max. machining current |
A |
47 |
| Machining current
selection |
- |
9 steps |
| Pulse width setting |
- |
9 steps/each |
STANDARD ACCESSORIES
| Model |
Unit |
|
| GUIDE Dia. 1.0mm |
- |
1 |
| ELECTRODE BRASS
Tube Dia. 1.0x400mm |
- |
10 |
| INSERT RUBBERS Dia.
1.0mm |
- |
3 |
| GUIDE Dia. 0.5mm |
- |
1 |
| INSERT RUBBERS Dia.
0.5mm |
- |
3 |
| ELECTRODE BRASS
Tube Dia. 0.5¡Ñ400mm |
- |
10 |
| TOOL BOX |
- |
1 |
| PAINT SPARE |
- |
1 |
| MACHINE PAD |
- |
3 |
| FLUSHING PIPE |
- |
1 |
| FILTER |
- |
1 |
| FLUSHING NOZZLE |
- |
1 |
| AIR FAST CONNECTOR |
- |
1 |
| SET OF ALLEN SPANNER |
- |
1 |
| HANDLE FOR FILTERCAP |
- |
1 |
OPTION ACCESSORIES
| Model |
Unit |
|
| ER SPINDLE |
- |
- |
| CE Conformity |
- |
- |
|
