1.Capable to read DXF file from AUTOCAD and transform to NC program directly.
2.NC program is compatible with Wire Cut working program. Without further amendment
it can begin to work from start point of wire cut program.
3.Optimum machining program can be called out automatically upon inputting thinkness
of workpiece, and wear rate.
4.Network capability (option).

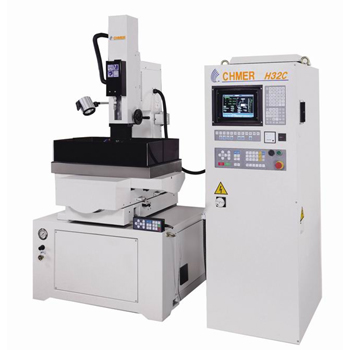

Drilling CNC Serial
1.CNC type(X350mm Y250mm)
2.Compact and economic design
3.Automatic electrode change
4.Reloading electrode pipeautomatically to improve productivity
MACHINE SPECIFICATION
| Model |
Unit |
CMH32C |
| Working Table |
mm |
600x300 |
| Table Travels (XxY) |
mm |
350x250 |
| Max. Work Piece
(WxDxH) |
mm |
800x400x300 |
| Max. Work Piece
Weight |
kg |
180 |
| Ram Servo Travel(Z1/W) |
mm |
340 |
| Work Head Travel(Z2/Z) |
mm |
200 |
| Guide Travel |
mm |
150 |
| Electrode Dide |
mm |
Ø0.2~Ø6.35 |
| Max. Length of Tube
Electrode |
mm |
400 |
| Dist. between SP
work table |
- |
15~365 |
| Tank Capacity |
L |
90 |
| Dielectric Fluid
Type |
- |
water |
| Machine (WxDxH) |
mm |
2185x1875x2330 |
| Net Weight |
kg |
800 |
POWER UNIT
| Model |
Unit |
|
| Input Power |
KVA |
3 |
| Pulse Generation |
- |
Power FET switching |
| Current Amp |
- |
47 |
| Current Setting |
- |
9 step |
| Pulse Width |
- |
32 step each |
STANDARD ACCESSORIES
| Model |
Insert Rubbers 1.0mm |
|
| Guide dia. 1.0mm |
- |
1 |
| Guide dia. 0.5mm |
- |
1 |
| Insert Rubbers 1.0mm |
- |
3 |
| Insert Rubbers 0.5mm |
- |
3 |
| Air Fast Connector |
- |
1 |
| Electrode Brass
dia. 1.0x400mm |
- |
10 |
| Electrode Brass
dia. 0.5x400mm |
- |
10 |
| Table Cover(Front) |
- |
1 |
| Table Cover(Back) |
- |
1 |
| Toole Box |
- |
1 |
| Flushing pipe |
- |
1 |
| Filter |
- |
1 |
| Air pipe |
- |
1 |
OPTION ACCESSORIES
| Model |
Unit |
|
| ER Spindle |
- |
- |
| AEC System (Auto
Electrode Change) |
- |
- |
|
