1.Drill small diameter holes through hardened tool steel and carbide.
2.Depth to diameter ratios >100(i.e., .020 dia. >2" deep.)
3.Enter on curved or angled surfaces.
4.Dielectric is distilled water.
5.3-axis DROs.
6.Edge finding and hole center finding.
7.Inch/metric switchable.
8.Z depth programmable.
9.99 built-in power settings plus operator programmed power settings (s-codes).
| Model |
Unit |

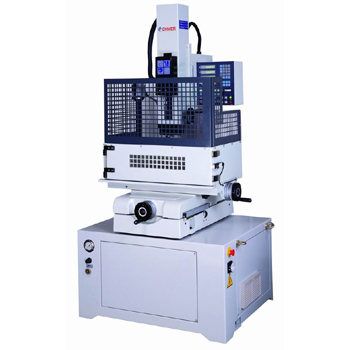

CMH32Z |
| Max. Work Piece
(WxDxH) |
mm/inch |
800x400x300 / 31.5x15.7x11.8 |
| Max. Work Piece
Weight |
kg/lb |
200 / 400 |
| Table travels (XxY) |
mm/inch |
350x250 / 13.7x9.8 |
| Ram Servo Travel
(Z1) |
mm/inch |
340 / 13.3 |
| Work Head Travel
(Z2) |
mm/inch |
200 / 7.8 |
| Guide Travel |
mm/inch |
150 / 5.9 |
| Max. Length of Tube
Electrode |
mm/inch |
400 / 15.7 |
| Dist. between SP
work table |
mm/inch |
15~365 / 0.6~14.3 |
| Machine Size |
mm/inch |
1380x1000x2350 / 54.3x39.4x92.5 |
| Net Weight |
kg/lb |
800 / 1760 |
POWER UNIT
| Model |
Unit |
|
| Input Power |
KVA |
3 |
| Pulse Generation |
- |
Power FET switching |
| Current |
- |
47 Amps |
| Current Channels |
- |
9 steps |
| Pulse Width |
- |
10 steps / each |
| Input Voltage |
- |
220 / 440 3ph / 60Hz |
STANDARD ACCESSORIES
| Model |
Unit |
|
| Guide Dia. 1.0mm |
- |
1 |
| Guide Dia. 0.5mm |
- |
1 |
| Insert Rubbers Dia.
1.0mm |
- |
3 |
| Insert Rubbers Dia.
0.5mm |
- |
3 |
| Electrode Brass
Tube Dia. 1.0¡Ñ400mm |
- |
10 |
| Electrode Brass
Tube Dia. 0.5¡Ñ400mm |
- |
10 |
| Tool Box |
- |
1 |
| Paint Spare |
- |
1 |
| Machine Pad |
- |
3 |
| Flushing Pipe |
- |
1 |
| Filter |
- |
1 |
| Flushing Nozzle |
- |
1 |
| Air Fast Connector |
- |
1 |
| Set of Allen Spanner |
- |
1 |
| Handle for Filtercap |
- |
1 |
OPTION ACCESSORIES
| Model |
Unit |
|
| ER Spindle |
- |
- |
| CE Conformity |
- |
- |
|
