1.All-in-One compact design.
2.Separate table and column driver for load of motors and maintaining high precision.
Ridig UV on the column for consistent precision under dielectric pressure.
3.Automatic selection of cutting parameters after inputting: wire diameters,
work piece material, cutting thickness, and skim cuts required (2, 3, or 4 passes).
4.PC based CNC cutting with Fanuc compatibility.
5.Five Axis AC servo drives.
6.Unique AWT that can re-thread reliability near 100%.
7.Anti-electrolysis power supply with fine finish circuit for carbides, titanium,
PCD and CBN material.
8.Low maintenance design, auto lubrication system, accessible inside-out large
capacity filters, large spent wire storage bin (wire chopper available).
MACHINE BODY
| Model |
Unit |

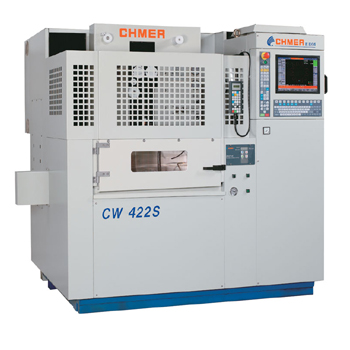

CW422F/S |
| Axis Travel(X,Y) |
mm |
400x250 |
| Auxiliary Table
Travel(U,V,Z) |
mm |
60x60x220 |
| Max. Size of Workpiece |
mm |
800x560x215 |
| Max. Weight of Workpiece |
kgw |
350 / 250 |
| XY Feed Rate |
mm/min |
Max. 800 |
| Axis Drive System |
- |
AC Servo Motor |
| Wire Diameter Range |
mm |
Ø0.15~Ø0.3(Ø0.25) |
| Max. Wire Feed Rate |
mm/sec |
300 |
| Wire Tension |
gf |
300-2500 |
| Taper Angle |
- |
+-14.5¢X/80 |
| |
|
(wide-angled nozzle, DA+DB=15mm) |
| Outline dimension |
mm |
2100x2600x2000 / 2100x2200x2000 |
| - |
- |
- |
| N.W(including power
and coolant system) |
kgw |
2500 |
| Coolant tank system |
L |
480 |
WORKING FLUID SUPPLY UNIT
| Model |
Unit |
|
| Filter Element |
- |
Paper |
| Ion Exchange Resins |
L |
6.8L(F) / 14L(S) |
| Conductivity Control |
- |
Auto |
| Fluid Temperature
Control |
- |
Auto |
POWER SUPPLY UNIT
| Model |
Unit |
|
| Circuit System |
- |
Power MOS Transistor |
| Max. Output Current |
- |
25A |
| IP Select |
- |
10 |
| Off Time Select |
- |
50 |
CNC UNIT
| Model |
Unit |
|
| Data Input |
- |
Keyboard, RS-232C, 3.5" Floppy
Disk |
| Display |
- |
14-Inch Color |
| Control System |
- |
32bit, 1-CPU, Semi Closed Loop |
| Control Axis |
- |
X,Y,Z,U,V(5 axis) |
| Setting Unit |
- |
0.001mm |
| Max. Command Value |
- |
+-9999.999mm |
| Interpolation |
- |
Linear / Circular |
| Command System |
- |
ABS / INC |
| Machining Feed Control |
- |
Servo / Const. Feed |
| Scaling |
- |
0.001~9999.999 |
| Machining EDM Condition
Memory |
- |
1000~9999 |
| Total AC Power Input |
- |
3 Phase 220+-10% / 13KVA |
STANDARD ACCESSORIES
| Model |
Unit |
|
| Ion Exchange Resins |
L |
3L(F) / 6L(S) |
| Energizing Carbides |
pcs |
2 |
| Paper Filters |
pcs |
2 |
| Brass Wire (dia.0.25mmx5kg) |
roll |
1 |
| Upper / Lower Flushing
Nozzles |
set |
1 |
| Tool |
set |
1 |
| Fine Finish Circuit |
set |
1 |
| Upper / Lower Diamond
Guides(dia.0.26mm) |
set |
1 |
| Water Chiller |
set |
1 |
| Diamond Guide Remove
jig |
set |
1 |
| Auto Lubrication
Equipment |
set |
1 |
| AC Power |
set |
1 |
| OV Circuit |
set |
1 |
| TFT Display |
set |
1 |
OPTIONALS
| Model |
Unit |
|
| Automatic Vertical
Alignment Jig |
- |
- |
| Auto Wire Threading |
- |
- |
| AVR |
- |
- |
| Wire Chopper Device |
- |
- |
| CE Conformity |
- |
- |
|
