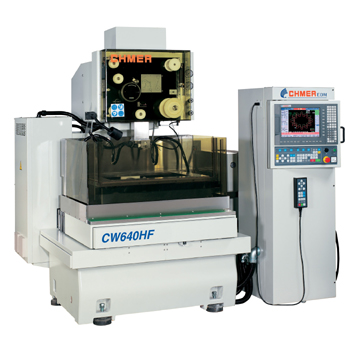

1.World's fastest atw system: wire threading 6 seconds! Twice faster (Thinkness
50mm) Awt nearly 100%. Even 150mm thinkness can reach 90%.
2.Running Wire threading at the wire breaking point and no need back to starting
point or dielectric release.
3.Taiwan's first dynamic servo wire suply system to offer stepless auto wire.
4.Feeding system to stablize threading.
5.Simplified, high reliablity & easy mentenance.
MACHINE BODY
| Model |
Unit |
CW640HF/S |
| X,Y axis |
mm |
600x400 / 600x380 |
| U,V,Z travel |
mm |
100x100x300 |
| Max. Size of Workpiece |
mm |
1000x700x295 |
| Max. Weight of Workpiece |
kgw |
650 / 500 |
| XY Feed Rate |
mm/min |
Max. 800 |
| Motor System |
axis |
AC Servo Motor |
| Wire Diameter Range |
mm |
Ø0.15-¡íØ0.3(Ø0.25) |
| Max. Wire Feed Rate |
mm/sec |
300 |
| Wire Tension |
gf |
400-2500 |
| Max. tape angle |
¢X |
+-21¢X/100 |
| workpiece thinkness |
mm |
(wide-angled nozzle, DA+DB=15mm) |
| Outline dimension |
mm |
3450x2300x2230 / 3450x2300x2230 |
| - |
- |
|
| N.W(including power
and coolant system) |
kgw |
3200 |
| Coolant tank system |
L |
340 / 760 |
POWER SUPPLY UNIT
| Model |
Unit |
|
| Circuit System |
- |
Power MOS Transistor |
| Max. Output Current |
- |
30A |
| IP Select |
- |
10 |
| Off Time Select |
- |
50 |
CNC UNIT
| Model |
Unit |
|
| Data Input |
- |
keyboard, RS-232C, 3.5-Inch Floppy
Disk |
| Display |
- |
15" TFT-LCD |
| Control System |
- |
32bit,1-CPU,Semi Closed Loop Software |
| Control Axis |
- |
X,Y,U,V,Z (5 Axis) |
| Setting Unit |
- |
0.001mm |
| Max. Command Value |
- |
+-9999.999mm |
| Interpolation |
- |
Linear / Circuler |
| Command System |
- |
Abs / Inch |
| Machining Feed Control |
- |
Servo / Const. Feed |
| Scaling |
- |
0.001-9999.999 |
| Auto 2nd Cut System |
- |
Re-trace And Auto Changed Machining
Data |
| Machining EDM Condition
Memory |
- |
1000-9999 |
| Outside Dimensions |
- |
820dx600wx1800h 450kg |
| Total AC Power Input |
- |
3 Phase 220+-10% / 13kva |
STANDARD ACCESSORIES
| Model |
Unit |
|
| Paper filters |
- |
2 |
| Water chillier |
- |
1 |
| Diamond guides |
- |
2 |
| Energizing |
- |
2 |
| Lon exchange resins |
3L / 6L(Submerged
machine) |
1 |
| Upper / lower flushing
nozzies |
- |
2 |
| Diamond guide remove
jig |
- |
1 |
| Brass wire |
- |
1 |
| Working kits |
- |
1 |
| AC power |
- |
- |
| OV open circuit
voltage |
- |
- |
OPTIONALS
| Model |
Unit |
|
| Large wire feeding
system |
- |
- |
| Auto wire cutting
system |
- |
- |
| AVR |
- |
- |
| Linear scales |
- |
- |
| Automatic wire threading
unit |
- |
- |
| Automatic vertical
alignment fixture |
- |
- |
| Z axis 400 (CW850HF/HS) |
- |
- |
| U axis=200, V axis=200,
Z axis=400 |
- |
- |
| (CW1060HF/HS) |
- |
- |
|
