1.Linear and circular interpolation.
2.Reurn to origin, cutting start point, reference point, wire breakage point.
3.Automatic positioning, edge and hole centering, column centering, slot centering.
4.Machine lock.
5.Single step and manual jog.
6.Display cutting time, cutting length, cutting speed.
7.3.5" floppy disk RS232 interface input/output.
8.Marked block jump over.
9.Cutting conditions display.
10.Dry run.
11.System date, time setting.
12.Cutting locus display with color change.
13.Absolute/incremental coordinates.
14.Multaiple sub-routine repeat calling.
15.Wire offset compensation file can be selected within program.
16.Inch/metric exchange.
17.Soft travel limits.
18.Trace return wire breake point, retrace to start point.
19.Top-bottom independent figure machining.
20.Machining path magnifier, rotation, mirror image & X,Y axis exchange.
21.Selection servo-feed, constant-feed.
22.Auto select stop function.
23.Machining path 3D view display.
24.Back ground editing.
25.Automatic wire verical alignment.
MACHINE BODY
| Model |
Unit |

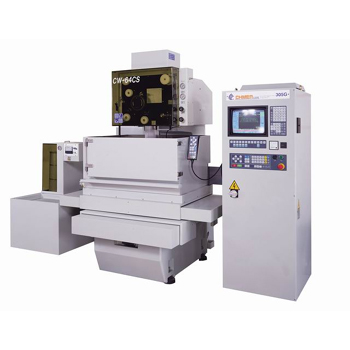

CW64CF/S |
| Axis travel (XxY) |
mm |
600x400 |
| Auxiliary table
travel (UxVxZ) |
mm |
100x100x300 |
| Max. size of workpiece |
mm |
1000x700x295 |
| Max. weigh of workpiece |
kg |
600 / 450 |
| XY feed rate |
mm |
Max. 800 |
| Axis drive system |
- |
AC Servo Motor |
| Wire diameter range |
mm |
Ø0.15-Ø0.3(Ø0.25) |
| Max. wire feed rate |
mm |
300 |
| Wire tension |
gf |
300-2500 |
| Taper angle |
mm |
+-21¢X/100mm(Wide angle taper nozzle) |
| Machine dimensions |
mm |
2800x3500v2250 / 2800x3200x2250 |
| Machine Weight |
kg |
3200 |
WORKING FLUID SUPPLY UNIT
| Model |
Unit |
CW32CF |
CW64CF/S |
| Tank Capacity |
L |
340 |
340 / 650 |
| Filter Element |
- |
paper |
paper |
| Ion Exchange Resin
(F)/(S) |
L |
6.8 / 14.4 |
6.8 / 14.4 |
| Conductivity Control |
- |
Auto |
Auto |
| Fluid Temperature
Control |
- |
Auto(standard) |
Auto(standard) |
| Outside Dimensions |
- |
700x1830x1310 / 800x2130x1350 |
700x1830x1310 / 800x2130x1350 |
| Net Weight (Without
Water) |
- |
300 |
300 |
CNC UNIT
| Model |
Unit |
|
| Data Input |
- |
Keyboard, RS-232C, 3.5"Floppy
Disk |
| Display |
- |
14-Inch Color |
| Control System |
- |
32bit,1-CPU, Semi Closed Loop |
| Control Axis |
- |
X,Y,U,V,Z(5 axis) |
| Setting Unit |
- |
0.001mm |
| Max. Command Value |
- |
¡Ó9999.999mm |
| Interpolation |
- |
Linear / Circular |
| Command System |
- |
Abs / Inch |
| Machining Feed Control |
- |
Servo/Const.Feed |
| Scaling |
- |
0.001-9999.999 |
| Auto 2nd Cut System |
- |
Re-trace And Auto Change Machining
Data |
| Machining EDM Condition
Memory |
- |
1000-9999 |
| Outside Dimensions |
- |
820Dx600Wx1800H |
| Total AC Power Input |
- |
3Phase 220¡Ó10% / 13kva |
STANDARD ACCESSORIES
| Model |
Unit |
|
| Ion Exchange Resins |
- |
1 |
| Paper filers |
- |
- |
| Upper/Lower flushing
nozzles |
- |
2 |
| Tools |
- |
1 |
| Dlamond guldes (dia.0.26mm) |
- |
2 |
| Energizing plates
(carbides) |
- |
2 |
| Diamond guide remove
jig |
- |
1 |
| Brass Wire (dia.0.25mm
x5kg) |
- |
1 |
| Water chillier |
- |
1 |
OPTIONAL ACCESSORIES
| Model |
Unit |
|
| AVR |
- |
- |
| Automatic verical |
- |
- |
| Alignment fixture |
- |
- |
| Open Circuit Voltage |
- |
- |
| Automatic wire threading
unit |
- |
- |
| AC Power |
- |
- |
| Auto lubrication |
- |
- |
| TFT Display |
- |
- |
|
