1.All-in-One compact design, floors by 1.8¡Ñ1.8m, adapts in any plant.
2.Easy to install just by plugging power line in.
3.Separated XY for balancing the load of motors and maintaining high precision
when surface finish, Strong UV on the column for consistent precision under
dielectric pressure.
4.Cutting conditions were made automatically after inputting wire diameter,
workpiece material and thickness and cutting mode.
5.Easy to operate the seccon, the third and the fourth cuts, particularly access
the second cut automatically.
6.Memorized cutting data and coordinates if power failure.
7.Affordable price.
8.Friendly dialogue PC BASED CNC controller.
9.Module design for easy maintenance.
MACHINE BODY
| Model |
Unit |

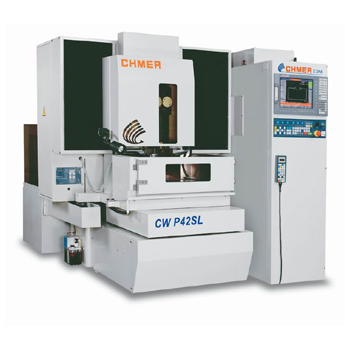

CWP42S/P42SL |
| Axis Travel X |
mm |
400 |
| Axis Travel Y |
mm |
250 |
| Axis Travel U |
mm |
60 |
| Axis Travel V |
mm |
60 |
| Axis Travel Z |
mm |
160 |
| Max. Size of Workpiece |
mm |
750x550x160 |
| Max. Weight of Workpiece |
kg |
100 |
| XY Feed Rate |
mm/min |
Max. 800 |
| Axis Drive System |
- |
AC Servo Motor (5 axis) |
| Wire Diameter Range |
mm |
Ø0.10-Ø0.3(Ø0.25) |
| Max. Wire Feed Rate |
mm/sec |
300 |
| Wire Tension |
gf |
300-2500 |
| Taper Angle |
- |
+-14.5¢X/80mm |
|
|
(Wide angle taper nozzle,DA+DB=15mm) |
| Outside Dimensions |
mm |
2200x2200x2100 |
| Machine Weight |
kg |
3000 |
WORKING FLUID SUPPLY UNIT
| Model |
Unit |
|
| Tank Capacity |
L |
680 |
| Filter Element |
- |
Paper |
| Ion Exchange Resins |
L |
14 |
| Conductivity Control |
- |
Auto |
| Fluid Temperature
Control |
- |
Auto (Standard) |
| Outside Dimensions |
mm |
2170x700x1200 |
| Net Weight (Without
Water) |
kg |
300 |
POWER SUPPLY UNIT
| Model |
Unit |
|
| Circuit System |
- |
Power MOS Transistor |
| Max. Output Current |
- |
25A |
| IP Select |
- |
10 |
| Off Time Select |
- |
50 |
CNC UNIT
| Model |
Unit |
|
| Data Input |
- |
Keyboard, RS-232C, 3.5-Inch Floppy
Disk |
| Display |
- |
15" TFT-LCD |
| Control System |
- |
32bit,1-CPU,Semi Closed Loop Software |
| Control Axis |
- |
X, Y, U, V, Z (5 Axis) |
| Setting Unit |
- |
0.001 mm |
| Max. Command Value |
- |
+-9999.999 mm |
| Interpolation |
- |
Linear / Circular |
| Command System |
- |
Abs / Inch |
| Machining Feed Control |
- |
Servo / Const. Feed |
| Scaling |
- |
0.001-9999.999 |
| Machining EDM Condition
Memory |
- |
1000-9999 |
| Outside Dimensions |
- |
820x600x1800 450kg |
| Total AC Power Input |
- |
3 Phase 220+-10% / 13kva |
STANDARD ACCESSORIES
| Model |
Unit |
|
| Ion exchange resins |
- |
- |
| Paper filter |
- |
- |
| Upper/Lower flushing
nozzies |
- |
- |
| Diamond guides |
- |
- |
| Water chiller |
- |
- |
| Auto lubrication |
- |
- |
| Energizing plates |
- |
- |
| Diamond guide remove
jig |
- |
- |
| Brass Wire |
- |
- |
| XY axes linear scale |
- |
- |
| Simple Clamping
fixture |
- |
- |
| Super fine finish
circuit |
- |
- |
| AC power |
- |
- |
| Open circuit voltage |
- |
- |
| Dia. 0.1 wire machining
technology |
- |
- |
OPTION ACCESSORIES
| Model |
Unit |
|
| Linear motor drive
set |
- |
- |
| Automatic wire cutter |
- |
- |
|
