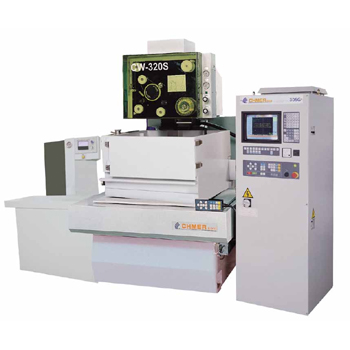

HIGH QUALITY DESIGN IMPROVES MACHINING ACCURACY
1.AC Servo Drives(5 Axis)
2.Industrial PC Controller, 3.5" FDD, RS232
3.Dialog Control for Easy Operation
4.High Speed Power Supply
5.Fine finish Circuitry
AUTOMATIC WIRE FEEDING DEVICE (AWT)
SIMPLIFIED CNC CONTROL
SIMPLIFIED MACHINING
1.Automatically thread or re-through the slot or start hole.
2.Threading and re-threading, reliability near 100%.
3.Dry Threading (No Water Jet) to allow Taper Threading and Submerged Threading.
4.Special wire annealing and wire cutting system (Patent).
5.AWT wire diameter available in £p0.3mm (0.1mm option).
6.Wire guide Diamond Eyelet type.
7.Maximum workpiece thickness for AWT 150mm (6").
ANTI-CORROSION MACHINING (AC-POWER SUPPLY)
1.AC power delivers higher accuracy and greater strength to the EDM'd surface
of Tungsten Carbide with almost no cobalt (binder) depletion.
2.AC power reduces oxidation on the EDM'd surface of Titanium, Aluminum, and
other specialty metals used in Aerospace and medical applications.
3.Losses in machining surface hardness due to electrolysis or corrosion can
be minimized, extending the life of dies.
4.In the machining of tungsten carbide and other sintered materials, there is
almost no reduction in strength after machining due to binder depletion.
5.Improved surface finishes for Form Tool and Mold Inserts. Eliminates surface
oxidation and discoloration of Titanium and other metals. Reurces oxidation
on tool steels during and after EDMing.
MACHINE BODY
| Model |
Unit |
| Axis Travel X, Y |
mm |
| Axis Travel U, V,
Z |
mm |
| Max. Size of Workpiece |
mm |
| Max. Weight of Workpiece |
kg |
| XY Feed Rate |
- |
| Axis Drive System |
- |
| Wire Diameter Range |
- |
| Max. Wire Feed Rate |
- |
| Wire Tension |
- |
| Taper Angle |
- |
|
|
| Machine Dimensions |
mm |
| Machine Weight |
kg |
| Tank Capacity |
L |
POWER SUPPLY UNIT
| Model |
Unit |
|
| Circuit System |
- |
Power MOS Transistor |
| Max. Output Current |
- |
25A |
| IP Select |
- |
10 |
| Off Time Select |
- |
50 |
CNC UNIT
| Model |
Unit |
|
| Data Input |
- |
Keyboard, RS-232C, 3.5-Inch Floppy
Disk |
| Display |
- |
14-Inch Color |
| Control System |
- |
32bit,1-CPU,Semi Closed Loop Software |
| Control Axis |
- |
X, Y, U, V, Z (5 Axis) |
| Setting Unit |
- |
0.001mm |
| Max. Command Value |
- |
+-9999.999mm |
| Interpolation |
- |
Linear/Circuler |
| Command System |
- |
Abs/Inch |
| Machining Feed Control |
- |
Servo/Const. Feed |
| Auto and Cut System |
- |
0.001-9999.999 |
| Outside Dimensions |
- |
1000-9999.999 |
| Total AC Power Input |
- |
3 Phase 220+-10%/13kva |
STANDARD ACCESSORIES
| Model |
Unit |
|
| Paper filter |
pcs |
2 |
| Water cooler |
set |
1 |
| Diamond guides |
pcs |
2 |
| Energizing plates |
pcs |
2 |
| Ion Exchange Resins(3kg) |
pcs |
1 |
| (sumberged-type:
6kg) |
- |
2 |
| Upper/Lower flushing
nozzles |
pcs |
1 |
| Diamond guide remove
jig |
set |
1 |
| Brass wire |
spool |
1 |
| Fixture |
set |
1 |
OPTIONALS
| Model |
Unit |
- |
| Automatic lubrication
equipment |
- |
- |
| AVR |
- |
- |
| Glass linear scale |
- |
- |
| Advanced LCD remote
controller |
- |
- |
| Wire chopper device |
- |
- |
| Non-electrolyze
AC power |
- |
- |
| 15" TFT-LCD monitor |
- |
- |
| Automatic wire threading
unit |
- |
- |
|
