1. Close-loop linear scales feedback on X, Y and Z axis for precise positioning
and cutting accuracy.
2. Dialog programming to automaticlly select optimum machining conditions based
on electrode size and material, work piece type, depth of cut and desired surface
finish.
3. E codes (canned orbit cycles) for commonly used modesi.e., side machining,
square, vectoring and circular enlarging, tapering.
4. Automatic edge and center finding, and Z reference location.
5. 3-axis liner, 2-axis arc, 3-axis spiral and 4-axis contouring offset movement.
6. 14"CRT with graphics, RS232, 3 1/2"FDD. Sub-programming.
7. 999 Z-axis automatic machining depths.
8. 99 sets of working parameters available from databaseoperrataor changeable.
9. Low wear power supply.
10.Automatic return to center and back-up function to respond to arcing conditions.
Die Sinking CNC Serial
1.Close-loop linear scales feedback on X Y and Z axis for precise positioning
and sparking accuracy.
MACHINE BODY
| Model |
Unit |

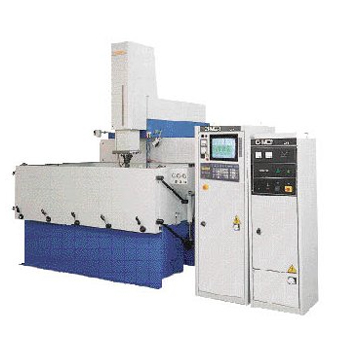

CM1065C |
| Table Size (WxD) |
mm/inch |
1200x800 / 47.2x31.5 |
| Work Tank Size (WvDxH) |
mm/inch |
2100x1200x600 / 82.7x47.2x23.6 |
| Table Travel (XxY) |
mm/inch |
1000v600 / 39.4x23.6 |
| Ram Travel (Z1) |
mm/inch |
500 / 19.7 |
| Distance from RAM
Platen to work table |
mm/inch |
450-950 / 17.7-37.4 |
| Max. electrode weight |
kg/lb |
350 / 770 |
| Max. Workpiece Weight |
kg/lb |
5000 / 11000 |
| Outside Dimensions |
mm/inch |
2500x2900x3150 / 98.4v114.1x124 |
| Weight |
kg |
6500 / 14300 |
| For Dielectric |
- |
D1065 |
POWER SUPPLY UNIT
| Model |
Unit |
50N |
75N |
125N |
150N |
| Max. machining current |
A |
50 |
75 |
125 |
150 |
| Max. Power Input |
KVA |
4 |
5 |
9 |
10 |
| Max. Machining Speed |
mm3/min |
350 |
550 |
900 |
1050 |
| Electrode Wear Rate |
% |
0.2 |
0.2 |
0.2 |
0.2 |
| Best Surface Roughness |
£gm/Ra |
0.45 0.2(by OB) |
0.45 0.2(by OB) |
0.45 0.2(by OB) |
0.45 0.2(by OB) |
| Outside Dimensions |
mm |
620x850x1860 |
620x850x1860 |
620x850x1860 + 450x470x1650 |
620x850x1860 + 450x470x1650 |
| Weight |
kg/lb |
180 / 396 |
220 / 484 |
400 / 880 |
440 / 968 |
DIELECTRIC
| Model |
Unit |
D323 |
D434 |
D655 |
D865 |
D1065 |
D1265 |
| Volume |
L |
280 |
390 |
1300 |
1600 |
2100 |
3500 |
| Filter |
method |
Paper Filter |
Paper Filter |
Paper Filter |
Paper Filter |
Paper Filter |
Paper Filter |
| Power |
HP |
0.5 |
0.5 |
0.5x1 1x1 |
0.5x1 1x1 |
0.5x1 1x1 |
0.5x2 1x1 |
| Weight |
kg/lb |
Built in |
80 / 176 |
220 / 484 |
250 / 550 |
350 / 770 |
450 / 990 |
| Outside Dimensions |
mm |
Built in |
1400x800x430 |
2500x1000x480 + 1200x600x480 |
2500x1000x480 + 1200x600x480x2 |
3000x1000x480 + 1450x500x480x2 |
3000x1500x580 + 1800x630x580x2 |
STANDARD ACCESSORIES
| Model |
Unit |
|
| Paper Filter |
set |
1 |
| Clamping Kits |
set |
1 |
| Tool Box |
set |
1 |
| Flushing Nozzle |
sets |
2 |
| Machine Stand |
set |
1 |
| Drill Chuck |
set |
1 |
| Electrode Holder |
set |
1 |
| Halogen Work Lamp |
set |
1 |
OPTIONAL ACCESSORIES
| Model |
Unit |
|
| Fire Extinguisher |
- |
- |
| Magnetic Base |
- |
- |
| Tool Changer |
- |
- |
| C Axis |
- |
- |
| CE Conformity |
- |
- |
|
