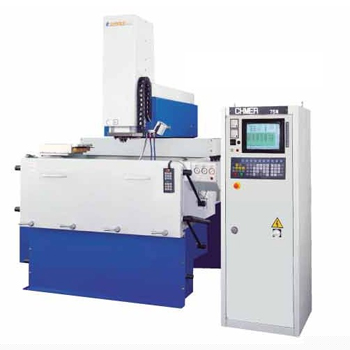

CM865C
Untitled Document

1. Close-loop linear scales feedback on X, Y and Z axis for precise positioning and cutting accuracy.
2. Dialog programming to automaticlly select optimum machining conditions based on electrode size and material, work piece type, depth of cut and desired surface finish.
3. E codes (canned orbit cycles) for commonly used modesi.e., side machining, square, vectoring and circular enlarging, tapering.
4. Automatic edge and center finding, and Z reference location.
5. 3-axis liner, 2-axis arc, 3-axis spiral and 4-axis contouring offset movement.
6. 14"CRT with graphics, RS232, 3 1/2"FDD. Sub-programming.
7. 999 Z-axis automatic machining depths.
8. 99 sets of working parameters available from databaseoperrataor changeable.
9. Low wear power supply.
10.Automatic return to center and back-up function to respond to arcing conditions.

Die Sinking CNC Serial

1.Close-loop linear scales feedback on X Y and Z axis for precise positioning and sparking accuracy.


MACHINE BODY
Model Unit CM865C
Table Size (WxD) mm/inch 1000x600 / 39.4x23.6
Work Tank Size (WxDxH) mm/inch 1600x1000x550 / 63x39.4x21.7
Table Travel (XxY) mm/inch 800x600 / 31.5x23.6
Ram Travel (Z1) mm/inch 500 / 19.7
Distance from RAM Platen to work table mm/inch 300-800 / 11.8-31.5
Max. electrode weight kg/lb 350 / 770
Max. Workpiece Weight kg/lb 4000 / 8800
Outside Dimensions mm/inch 1800x2400x2800 / 70.8x94.4x110.2
Weight kg 4500 / 9900
For Dielectric - D865

POWER SUPPLY UNIT
Model Unit 50N 75N 125N 150N
Max. machining current A 50 75 125 150
Max. Power Input KVA 4 5 9 10
Max. Machining Speed mm3/min 350 550 900 1050
Electrode Wear Rate % 0.2 0.2 0.2 0.2
Best Surface Roughness £gm/Ra 0.45 0.2(by OB) 0.45 0.2(by OB) 0.45 0.2(by OB) 0.45 0.2(by OB)
Outside Dimensions mm 620x850x1860 620x850x1860 620x850x1860 + 450x470x1650 620x850x1860 + 450x470x1650
Weight kg/lb 180 / 396 220 / 484 400 / 880 440 / 968

DIELECTRIC
Model Unit D323 D434 D655 D865 D1065 D1265
Volume L 280 390 1300 1600 2100 3500
Filter method Paper Filter Paper Filter Paper Filter Paper Filter Paper Filter Paper Filter
Power HP 0.5 0.5 0.5x1 1x1 0.5x1 1x1 0.5x1 1x1 0.5x2 1x1
Weight kg/lb Built in 80 / 176 220 / 484 250 / 550 350 / 770 450 / 990
Outside Dimensions mm Built in 1400x800x430 2500x1000x480 + 1200x600x480 2500x1000x480 + 1200x600x480x2 3000x1000x480 + 1450x500x480x2 3000x1500x580 + 1800x630x580v2

STANDARD ACCESSORIES
Model Unit
Paper Filter set 1
Clamping Kits set 1
Tool Box set 1
Flushing Nozzle sets 2
Machine Stand set 1
Drill Chuck set 1
Electrode Holder set 1
Halogen Work Lamp set 1

OPTIONAL ACCESSORIES
Model Unit
Fire Extinguisher - -
Magnetic Base - -
Tool Changer - -
C Axis - -
CE Conformity - -
